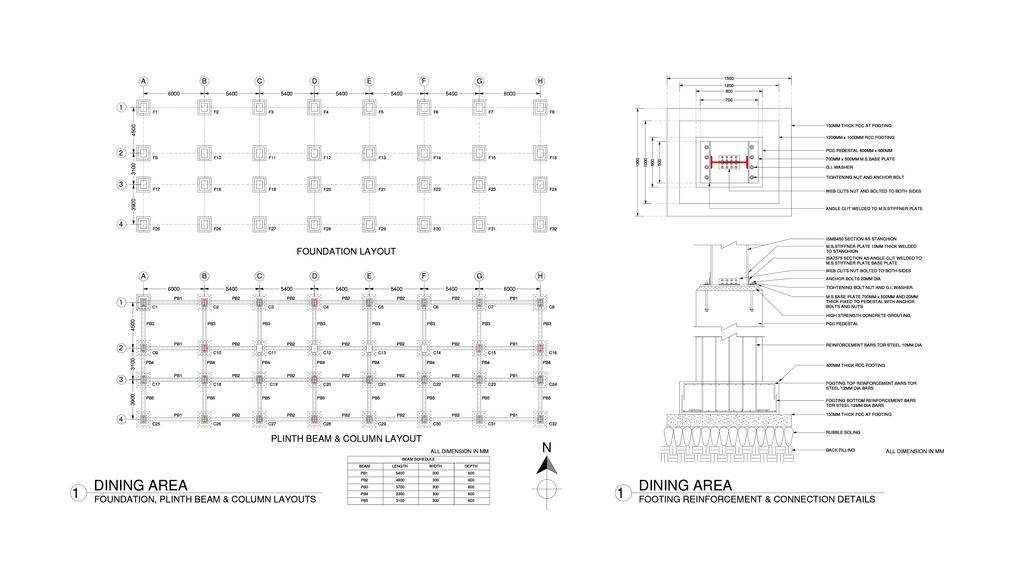

The Project Was To Design The Structural Details And Elevations Of Truss. This Structure Is Taken From Previous Semester Ad Project Which Was Originally A School Building. A Part Of This Project That Is The Dining Area And The Multipurpose Area Was Taken. This Project Was All About Steel Structures And Its Connection Details With Steel- Beams, Stanchions, Gusset Plates, Angles, Etc. The Dining Area Has A Prate Truss Profile With A Curve From The Bottom Which Gives It A Beautiful Arched Look Over The Dining Area. This Area Also Has A Mezzanine Level Which Is Supported By Steel Sections Of Various Sizes Acting As Primary And Secondary Beams And Steel Joists. Further In The Details Section The Details Of Staircase, Toilet And Steel Connections Are Explained.

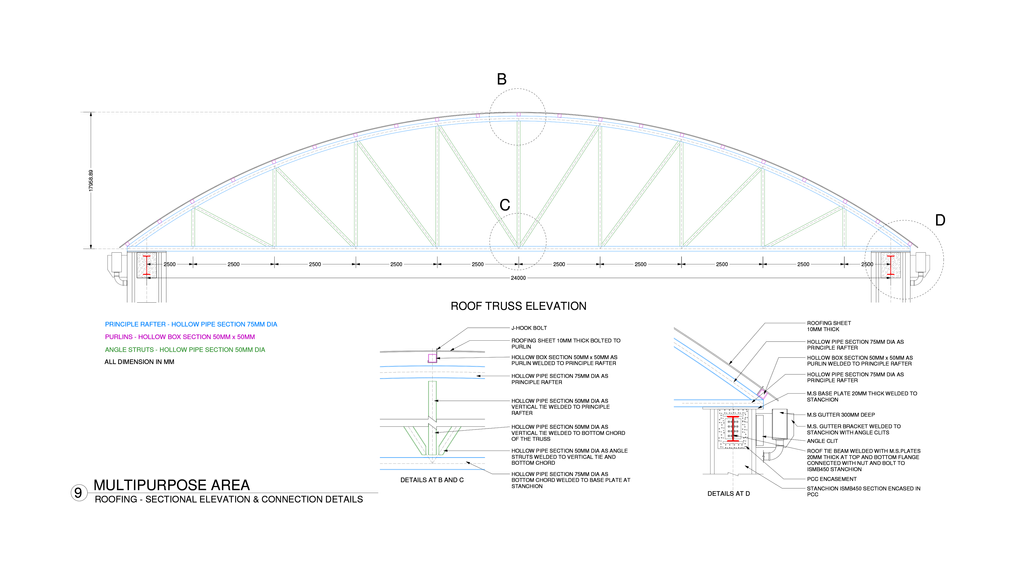

The Other Structure Is A Multipurpose Area Again With A Large Span. This Has A Truss Profile Named Bow String The Name Itself Suggest Shaped Like A Bow. This Truss Alo Uses Hollow Pipe Sections As Previous Truss Which Are Light Weight, Strong, And Aesthetically Look Good From All Sides. Similarly As Earlier Details Of The Connections Are Explained In The Details Section Of The Project
