Architectural Building Construction and Materials
II
Ar. Tushar Shetty
Studio Conductors
Ar. Tushar Shetty
:
:
:
:
:
:
:
:
:
:
:

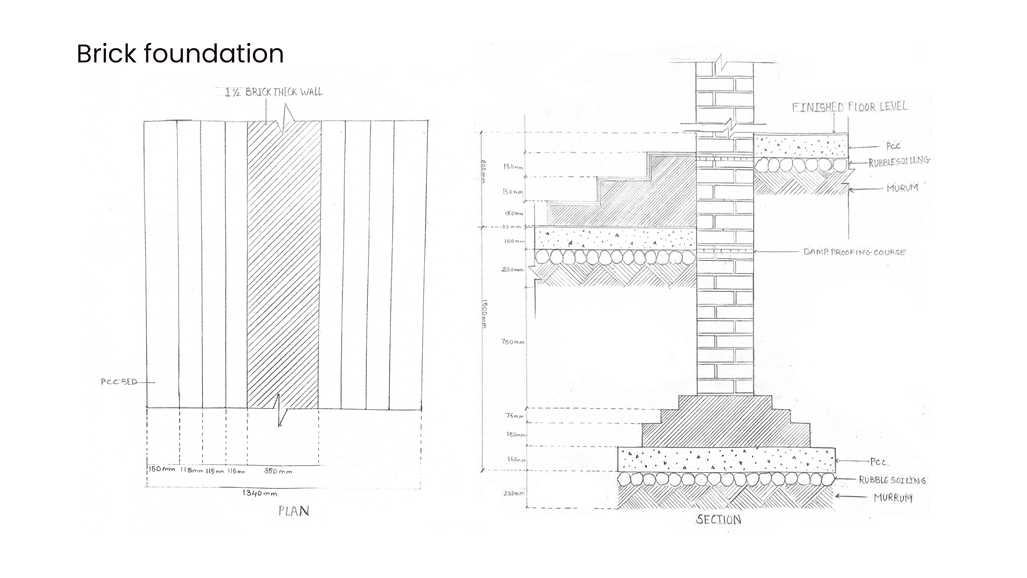

In this technical Subject we acquired details related to construction.These are drafted so as to understand the proportions and scale of the objects. Initially it started with understanding brick bonds and foundations along with types of lintels and arches. Also a wide introduction in timber construction such as timber floors and joineries was studied. Elements such as roof staircase doors and windows with its standard dimensions were drafted.
Brick, Stone and Timber constructional drawings 1
